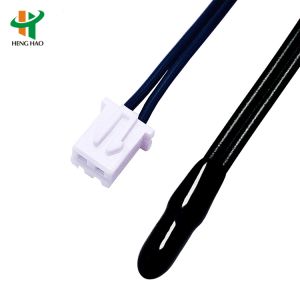

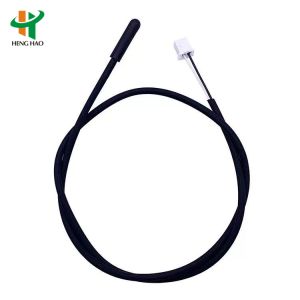

PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

Product Categories

Dongguan Heng Hao Electric Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

NTC TEMPERATURE SENSOR

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	5K,8K,10K,15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1,±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85(material coefficient)(thermal-sensitivity index)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient)	≥0.8mw/ºC	Static in the air
T(thermal time constant)	≤25S	Static in the air
Ta(Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	within working temperature

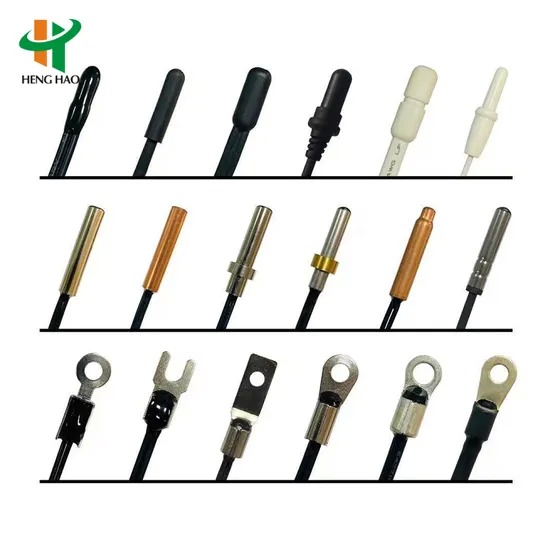

Case and head		Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire		#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal		Can be riveted according to the requirements of various terminals

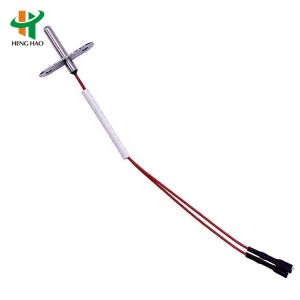

PT100/PT500/PT1000 Temperature sensor

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50,PT1000,K,E,J,T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe	4*30mm, or according to client's request to design.
Thermal time constant	0.5S
Lead wire	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC)
Dia	3mm~16mm
terminal	Y type, Pin,XH2.54 or according to client's request.
Level of protection	IP68
